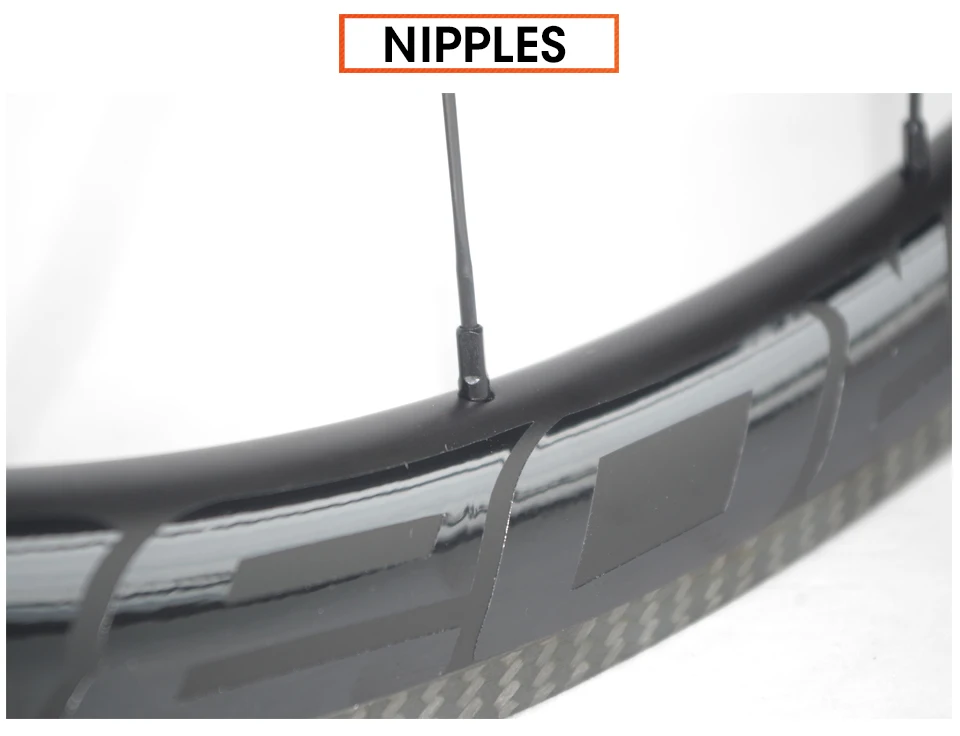

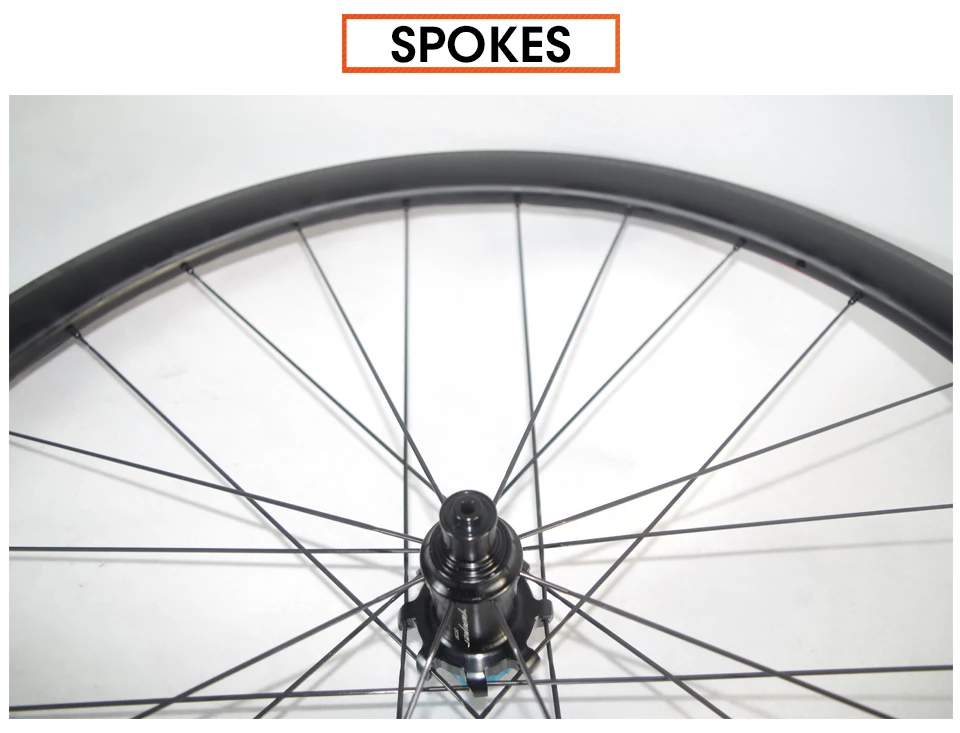

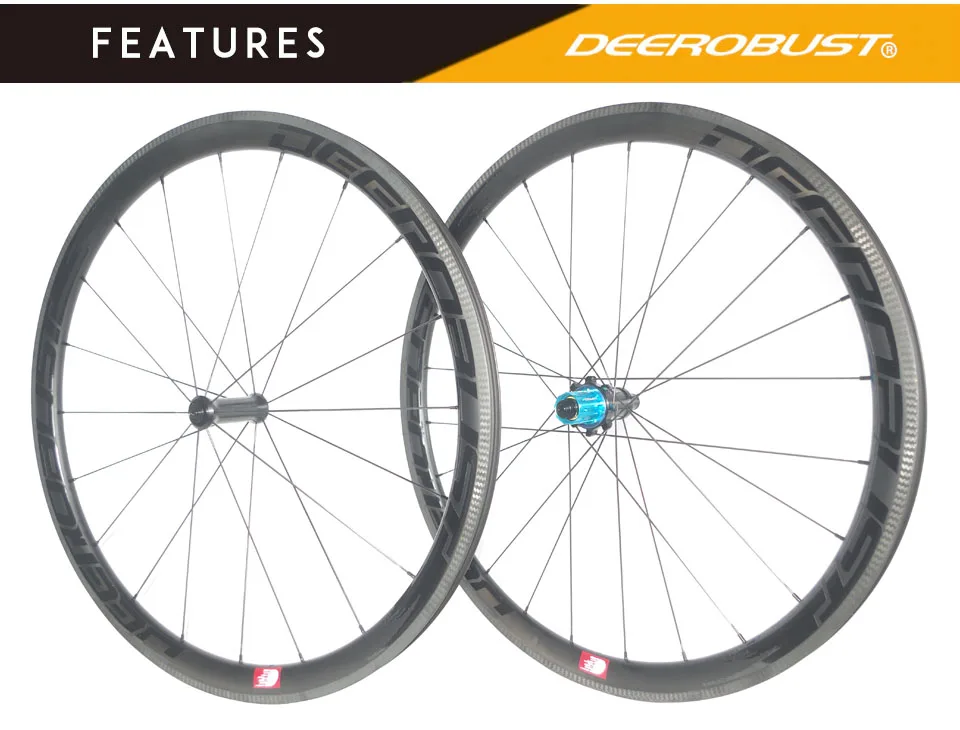

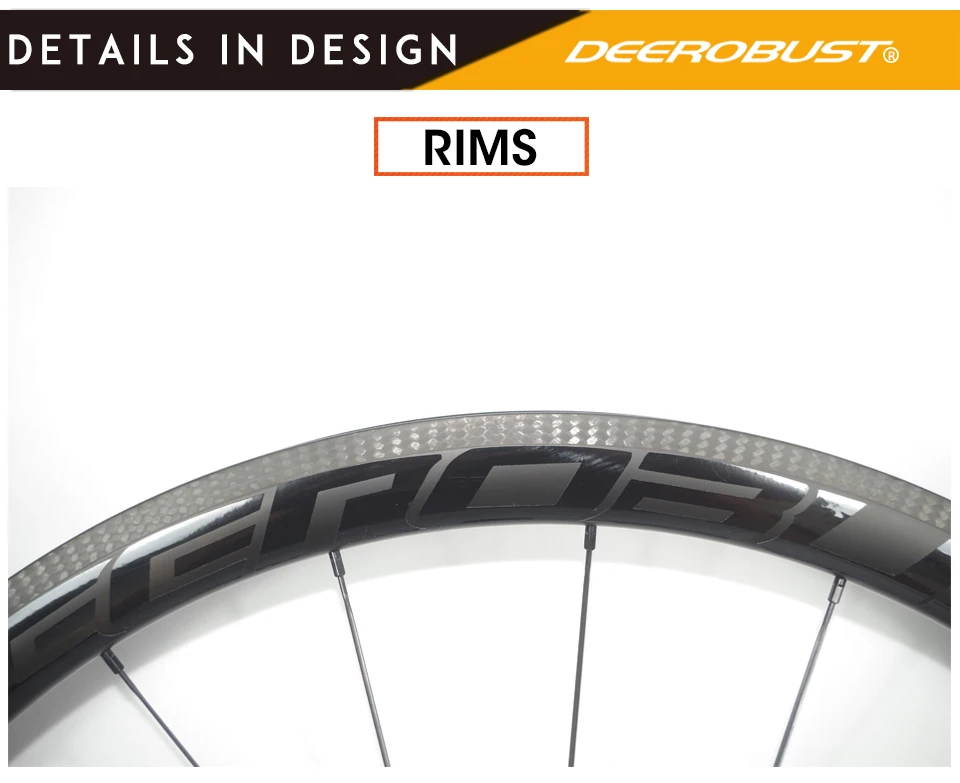

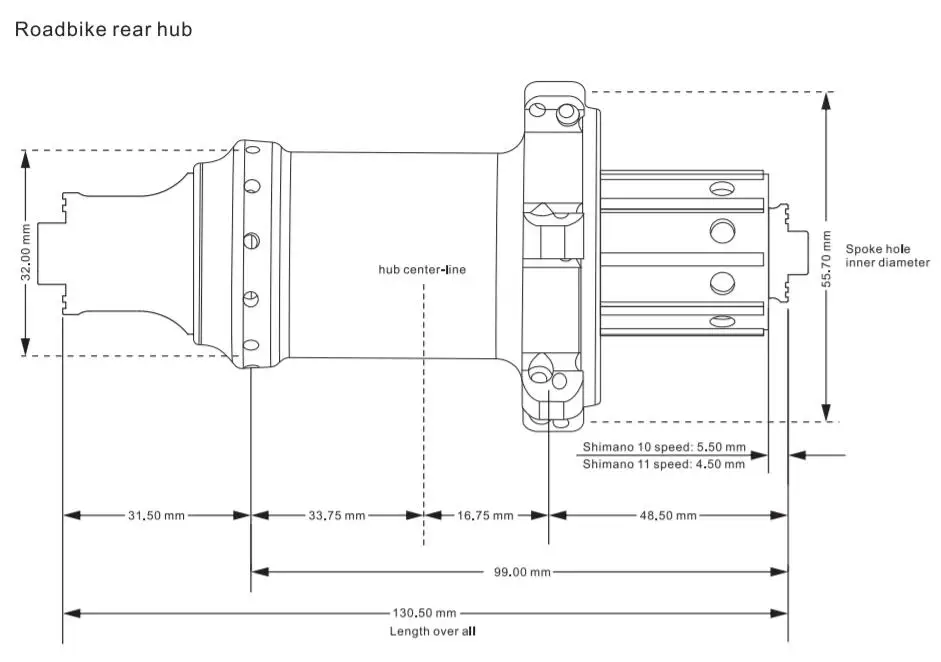

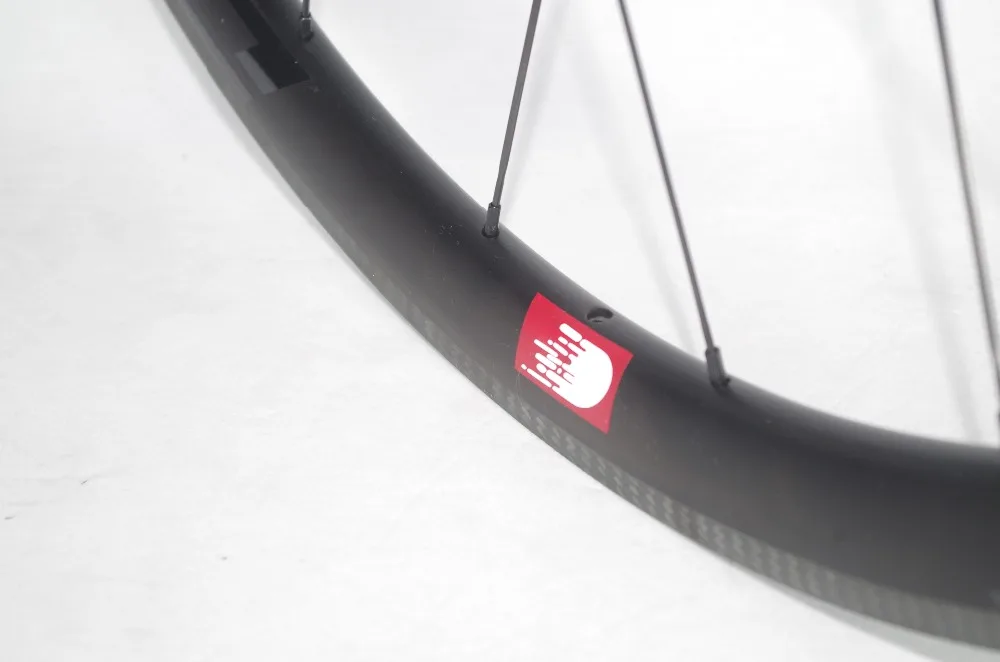

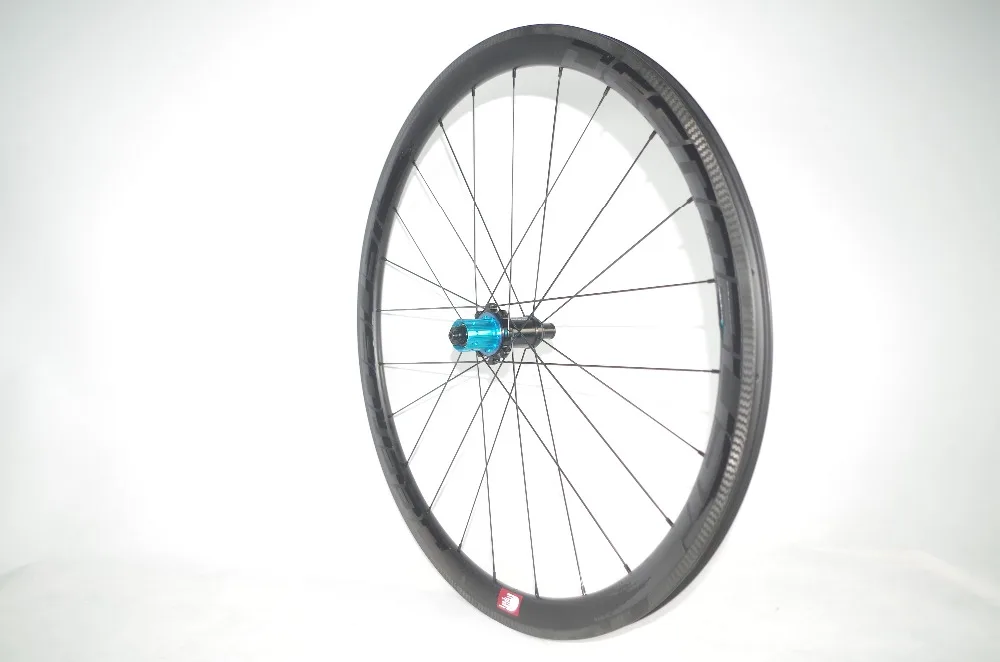

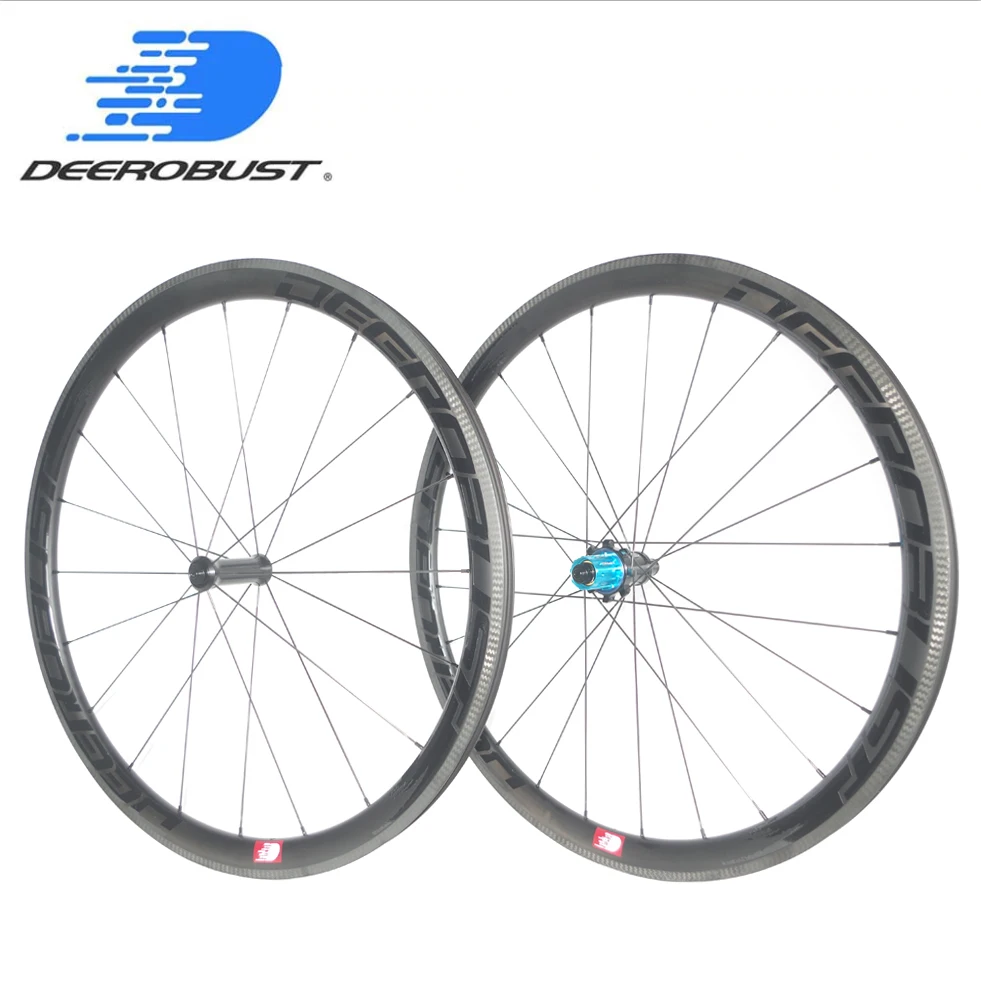

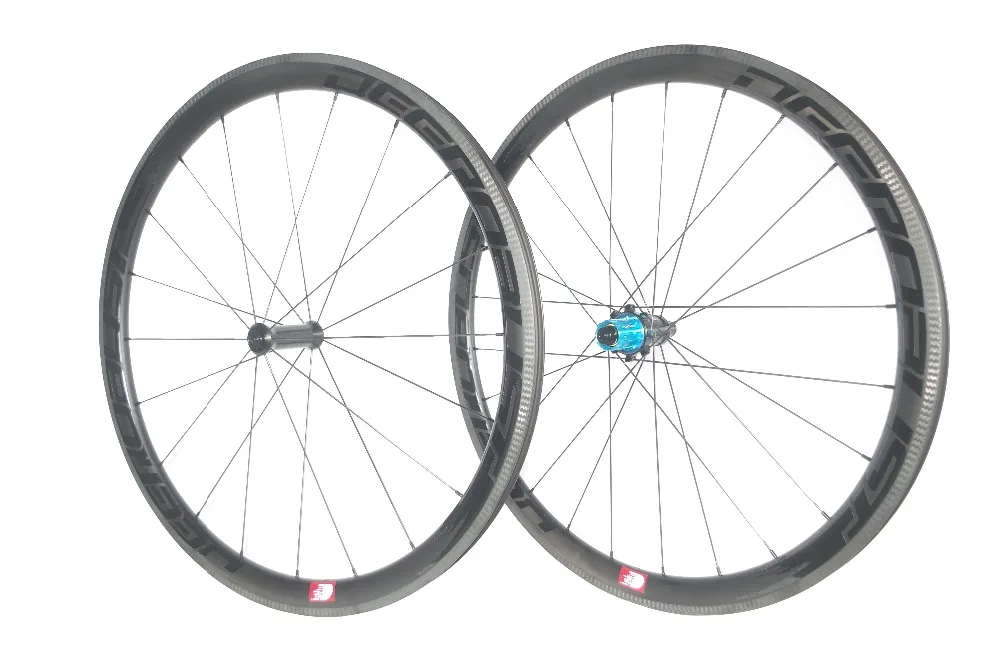

DEEROBUST HIGH-END ROAD RIM TYPE Clincher - Tubeless ready Rim SIZE 700C RIM MATERIAL Carbon RIM MATERIAL DETAILS Full Carbon, UD - unidirectional fiber RIM HEIGHT 30mm/38mm/45mm/50mm RIM WIDTH 25mm TYRE WIDTH 23C~38C BRAKING SYSTEM Rim Brake FRONT AXLE COMPATIBILITY QR 5mm x 100mm REAR AXLE COMPATIBILITY QR 5mm x 130mm WHEEL SPOKES Counts 20/24 SPOKE 1. Pillar 1420, Sandvik T302 2. Sapim CX-Ray, 18/8 stainless steel alloy, high-tensile, fatigue-resistant SPOKE PROFILE TECHNOLOGY Aero, Straight Pull NIPPLES Sapim SILS Polyax Aluminum alloy Nipples FRONT HUB YP ROAD FRONT, 76g REAR HUB YP ROAD REAR. 188g FREEWHEEL STANDARD: Shimano / SRAM BEARINGS 2 in the front and 4 in the rear WEIGHT LIMIT 100kg (Cyclist) WEIGHT 30mm: 1265g 38mm: 1275g 45mm: 1335g 50mm: 1355g Tolerance: +/-5% ■ Super light lay-up&material; Using the latest carbon forming technology, we are able to build a very strong rim from carbon only. Combined with Toray T700 and T800, we researched and developed a rim in flyweight, which is lighter than most of the rims in the market. ■HIGH TG 255°. At Deerobust, safety is the first priority and we have gone to great lengths to ensure that all our wheels offer optimal braking, and are safe for riders. Overheating is the enemy of carbon fiber braking surfaces and can potentially lead to warping or failures. H-END SERIES comes with carbon rims made of patented high epoxy resin fomula with no braking failure. The actual resin decomposing temperature is 350°. ■ Diamond polish treatment brake surface for a best braking performance. ■ Extra inner width for bigger tires. The new wider rim generation provides a better support to the tire and reduce the rolling resistance, increasing at the same time the wheel strength and providing enhanced aerodynamics. ■ RIM WEAVE: UD - unidirectional fiber UD fibers have been shown to provide excellent strength and vibration dampening benefits. ■ 3K Twill Brake Surface Spoke Hole Angles Deerobust will drill spoke hole angles to match the spoke angles created by the hub, rim size,spoke number, and crossing pattern. Matching the spoke hole drilling angle in the rim to the spoke angles generated allows the nipples to be better aligned with the spoke when the wheel is tensioned to reduce stress on the spoke holes, nipples ans spokes. This is just one of the small hidden features that make ourwheels outstanding. ■ Internal&external nipple systems available With the experience gained on our MTB hubs, we now launched our range of road-bike hubs. We managed to build the front hub below 75g and the rear hub below 180g. ■ Nitro BEARINGS: Front: 6803*2 Rear: 17287*2, 6803*2 Bearings are a very small part of your bike, but play one of the biggest roles in terms of its performance. The life expectancy of a bicycle component is highly correlated with the life-time of the bearing, which is used in the product. With our experience, we are able to offer a bearing solution which lasts longer than a standard bearing. The black surface treatment on the NITRO-bearings makes them less prone to rust. Improved sales reduce the probability of water and humidity getting into the bearing. Further more, we used high end grease which protects the inner structure of the bearing and assures a very good lubrication. Internal clearances and accuracy classes are no foreign words to us. ■ Leaf System on freehub body The freehub body features three independently operating pawls (leaf system) for very fast engagement and bigger pedal’s force transmitting. An independent wider spring, under each pawl, guarantee solid engagement out of each pawl. ■ Rear Hub 2:1 pattern The rear hub design and spokes count (2:1 pattern) results in improved lateral stiffness for any riding style. Based on the request from the market, we developed road bike 1. PSR X-TRA Pillar 1420, Sandvik T302 Pillar 1420 Aero Bladed Spokes. Incerase Wheel Strength and Improve Aerodynamic Speed. Pillar 1420 superlight Aero Bladed spokes weights only 4.3g/pcs (260mm), Almost the same performance as DT swiss AERO lite. 2. Sapim CX-Ray. Premium Spokes. Arguably the best spokes in the world. The aerodynamic shape of the CX-Ray isalso 30% lighter than standard round spokes. Spoke tension:Front: 120kgf Rear driving side: 130kgf Rear non-driving side: 100kgf Sapim SILS Polyax. Aluminum alloy Nipples High profile or radially mounted wheels are prone to impacts which can cause momentary loss of spoke tension, allowing nipples to loosen. Sapim SILS Polyax Aluminum alloy nipples (Sapim Integrated Locking System) have a special thread system which prevents loosening. A SILS nipple, which is self-locking, does not degrade over time, allowing wheels to be trued, re-tensioned, or re-dished with minimal hassle. Hand-Built Each DEEROBUST hand-built wheelset is assembled by a highly trained professional from lacing, turing to precise spoke tension balance, which lead to the strongest wheel possible while keeping weight at a minimum. Accessories We strongly believe that the quality, consistency and quality of our products is the most cost-effective in the industry. In order to ensure that DEEROBUST rims not only meet international safety requirements but also comply with additional and higher quality standards, we use SGS and EN 14781 standards when manufacturing the rims. What is the difference between UD, 3K and 12K carbon finish? What is the difference of Matte or Glossy finish? UD, 3K and 12K specify the carbon weave pattern. 3K means there are 3,000 filaments per "tow", 12K means there are 12,000 and UD means unidirectional (no pattern). There is usually an option to choose between matte or glossy. Matte results in more stealthy look, glossy will make the pattern pop. Can I have rims without nipple holes in the rim tire bed? Yes, you can decide whether to have nipple holes in the rim tire bed or not. Can I have rims with internal nipple holes? Yes, you can decide either internal nipple holes or external nipple holes. Wheel choice – deciding what rim depth is best This is an added element of modern-day cycling strategy. DEEROBUST has so many different rims at different heights, from 20mm to 88mm. We will offer some guideline on which DEEROBUST wheel matches which type of terrain: 20mm to 40mm depth – “Uphill, long climbs.” 45mm to 50mm depth – “Up and down all day.” 60mm depth – “Some up and down, flat.” 60mm depth front, 88mm depth rear – “Lead outs.” 88mm depth, Disc Wheel, Tri Spokes – Time trials. Symmetrical vs asymmetrical. Asymmetrical rims build up into stiffer, stronger and more reliable wheels by improving the bracing angles of a dished wheel and equalizing the spoke tensions between the drive and non-drive side spokes. On a mountain bike/ Cyclocross/ Gravel bike wheelset with disc brakes, both the front and rear wheels have significant dish. With symmetric rims, the rim is centered (or dished) by decreasing spoke tension on one side relative to the other so that the rim is pulled into center. So using asymmetric rims front and rear will be an optimal option. On a Road bike wheelset, the rear wheel has significant dish. With traditional rims, the rim is centered (or dished) by decreasing spoke tension on one side relative to the other so that the rim is pulled into center. So using front symmetric rear asymmetric will be an optimal option. Do you offer a choice of decal colors? Absolutely! You have your choice of white, black, bronze, blue, green, yellow, orange, pink, purple, red or turquoise. Can I choose the custom decal? Yes, feel free to send us the design file of your custom decal. We will offer corresponding quote based on the color amount and pattern. How do I choose the brake pads? We recommend the brake pads which are made of cork wood. DEEROBUST brake pads have been designed specifically for DEEROBUST’s carbon rims to offer the best balance of power and modulation in both wet and dry weather conditions. Or you can choose Swiss Stop brake pads, Reynolds brake pads, which also have excellent modulation performance. DEEROBUST lightweight racing carbon rims,wheel and spoke wheeare guaranteedfor24MONTHS. Any quality issues occur within 24 months, we are obliged to repair/replace neccessary components for free. What’s more, if there is unlucky crash/accidents with your wheels with 30 months, we are willing to offer you new wheels at minimum cost. This warranty is non-transferable and valid to the original purchaser of the product only. The following improper use will void your warranty 1. Crashes and accidents 2. Misuse (off-road riding, jumping, trick riding, Cyclocross, etc) 3. Modification of wheels or Improper assembly 4. Tire pressure exceeding 140psi 5. Normal wear and tear 6. Improper follow-up maintenance or maintenance by an unauthorized technician. 7. Installation of parts or accessories not originally intended for, or not compatible with the wheelset as sold 8. Damage or deterioration on the surface finish or appearance which has no effect on the function 9. Damages caused by natural disaster This warranty does not cover: 1. Normal wear items (bearings, skewers, spokes etc. 2. Surface finishes and cosmetic treatments (anodizing, decals, etc) 3. All other bicycle components 4. Consequential or incidental damages (where applicable) Warning: If you do not follow these guidelines,the warranty will be void. 1. Use brake pads for carbon rims only. Change brake pads when wear is indicated. 2.Use high pressure rim tape for clincher wheels. 3. Clean rim surface and brake pads before you use your wheels. 4. Exceed the maximum tire inflation pressure recommended. Road: 130psi; MTB: 65psi Whenwill my rims/wheelsetsbe shippedafter Imake the payment? If the rims or wheelsets are in stock, we will ship them out within 3 business days. If there is no stock, it will take about 7~21 days for rims manufacturing. What shipping method do you use? Normally, we ship the products by Aliexpress Standard Shipping. The estimated delivery time by Aliexpress Standard is 14 ~18 business days. If you wanna use a faster shipping method, like DHL, FedEx, UPS, TNT etc, please contact us, you may need to pay additional shipping cost. Delivery time depends on destination and other factors. If you have not received your shipment within 20 days of payment, please feel free to contact us. We will track the shipment and get back to you as soon as possible. If you still do not receive the package for 2 months, we will arrange new products for you or arrange a refund. Are there any import taxes or customs charges that I need to be aware of if I purchase this and have it shipped to XXX country?Will you help me to claim lower value to my Custom? The Customs policy varies from countries to countries regarding import taxes and duties. Taxes are not included in either item prices or shipping cost. Customs fees, or Customs duties may be charged when parcel arrives at your country. Whether your parcel will be taxed and what amount will be charged is beyond our control. If you have any specific request on Custom declaration, please send message to us and we will do our best to help you solve the problem. We also offer DDP shipping method to European countries. If the wheels will be delivered to below countries, please check with us whether you can use this service or not. Italy, Spain, Greece, Portugal, Hungary, Denmark, Estonia, Finland, Germany, Norway, Sweden If the wheels will be delivered to below countries, justclickthe picture above for the upgrade. Belgium,Poland, Lithuania, Austria, Luxemburg, Czech, Slovakia, Slovenia, Latvia, Ireland What can I do if I receive a damaged parcel? Your rims/wheels will be packed and protected carefully to make sure that they are in good conditions. If the parcel arrives at you with obvious shipping damage, please refuse to sign for it. Then the package will be returned to DEEROBUST and we'll produce new products for you or arrange a refund. If you have signed for the package and then find damage due to shipping, please contact us immediately. We will help you to solve the problem as soon as possible. Please save all packaging and paperwork for the order if they are damaged due to shipping . Established in 2014, DEEROBUST Bicycle Co., Ltd. is focused on hand-built high performance carbon wheels.Building premium wheels that offer impeccable ride quality and unmatched durability is our priority. With 7-year experience in carbon wheels industry, profound expertise and consistent quality, we are confident to introduce “DEEROBUST” to the professional and amateur riders. DEERBOUST is the combination of “DEER” and “ROBUST”, which represents the characteristics of our carbon wheels, lightweight, efficiency and stability. As a quality oriented company, we offer high-end customization and complete product line on carbon wheels. DEEROBUST only offer mid-end and high-end wheelsets from MTB XC/TRAIL/AM/DH/FR, Road disc brake/rim brake to small size wheels like balance bike, bmx and folding bike, which are almost built for training and competition, All our carbon rims are customized from the top factory which do OEM&ODM for many world famous brand. Our standard for the rims are very strict and we only pick the rims that meet standard to build the wheels for you. As our production time is comparatively longer, please contact us if your demand is urgent. As the technology of carbon rims is improved day by day, we would like to provide the wheels with the rims which are up-to-date. As a result, we do not prepare many stock and almost all our rims are newly produced after order received to suit different demand from different racers. Thanks for your continuous support for DEEROBUST, and we are striving to improve ourselves in terms of service, quality, etc. If there's anything we can help with, don't hesitate to contact us. If you are satisfied with your purchase and our service, we will greatly appreciate it if you give us a five-star feedback and leave positive comments on your experience with us, which will be a great encouragement to us. If you have any questions or problems, please contact us directly for assistance, rather than submitting a refund request. We will try our best to solve all problems as quickly as possible. It will be a large support and encouragement for us if you give us a five-star feedback and leave positive comments on your experience withDEEROBUST, we will send you a beautiful gift if you could attach some pictures at the same time.
