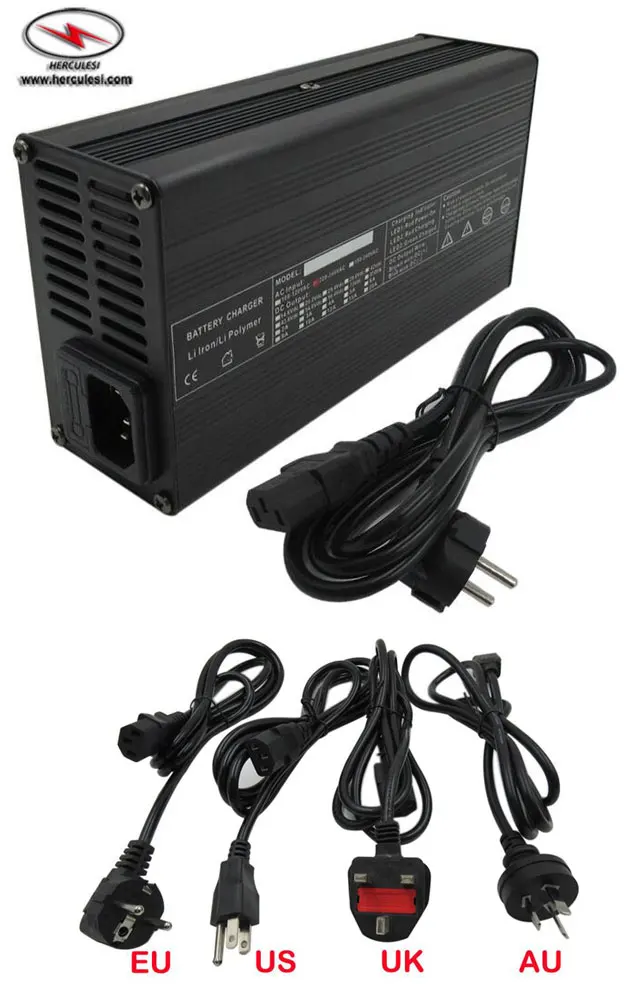

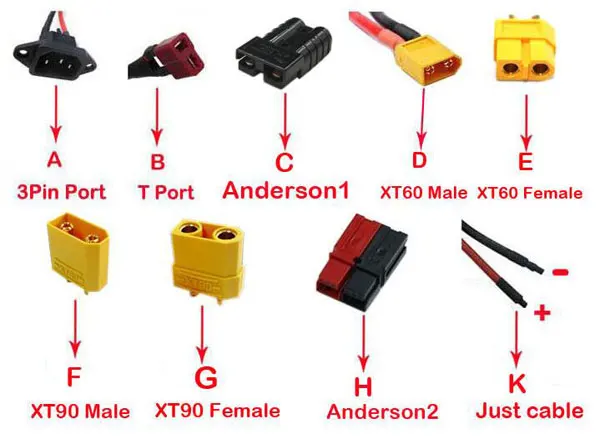

Triangle Lithium Battery Pack 72V 20Ah for 72V 3000W Electric Bike Battery Specifications for72v 20ah battery Battery Type 72V20Ah Rated Voltage 72V Rated Capacity 20.3Ah Source Resistance(mΩ) ≤40mΩ Cell Cell's type P anasonic 2900mAh Japan 3C cells Cell Combination 20S7P Cell Quantity 140pcs Charger Charge Mode CC/CV Standard Charge Current 2A Fast Charge Current 5A Charge Cutoff Voltage 84V Cell OverCharge Protection Voltage 4.2V/Cell Charger Type US,UK,AU,EU plug Discharge Continuous Discharge Current 50A Max Continuous Discharge Current 50A Peak Discharge Current 60A Discharge Cutoff Voltage 55V Cell Overdischarge Protection Voltage 2.75V/Cell Discharge Port Type Anderson Port,..... Working Temperature Charge Temperature 0~45°C Discharge Temperature -20~65°C Cycle Life 1000 times at 100% DOD Fit for Motor 3600W 3000W QS Motor Dimension (L*W*H) 45*70*90*200*310*350mm Weight NW 7.5 kgs /GW 10kgs Certifications CE,UL,ROSH, UN38.3,MSDS Application 72v 3000w electric bike battery Warranty 13months Package Include 1 × Lithium Battery Pack 1 × BMS System inside 1 × 84V 4A EU US UK AU Charger Pictures for72v 20ah Discharge ports for your choices
